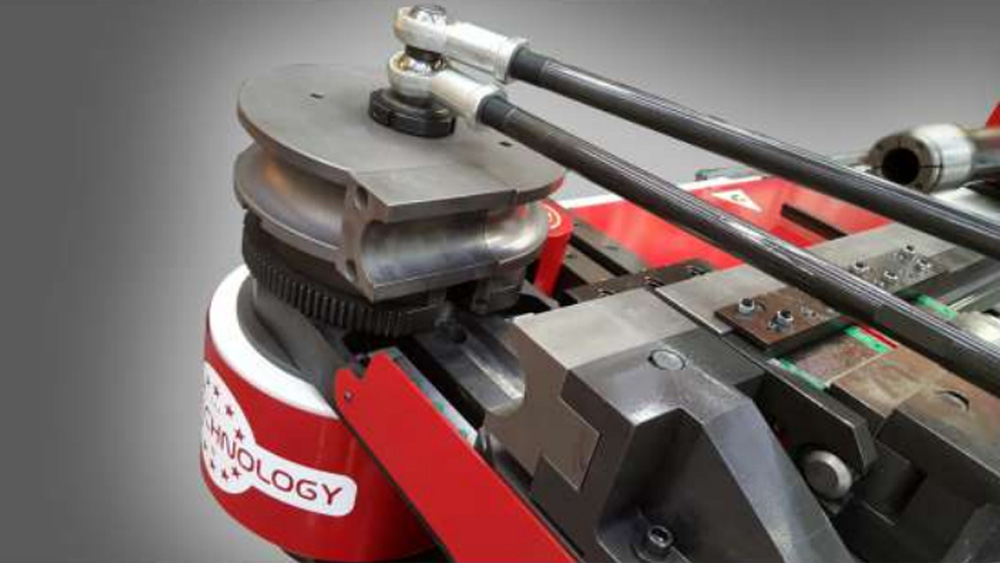

EVO BEND represents a line of pipe bends designed to combine price, quality and design, in order to offer our customers the right solution for levels of automation 3 axes. Designed and assembled in Italy, it has all the technologies and innovations derived from the over 40 years know-how of Star Technology.
It possesses an exclusive control system of STI machine through simplified graphical interface, creation cycles through file import and allows to simulate in 3D the realization of the pieces. Everything is manageable from our B&R consoles with i5 processor, 16 Gb RAM memory and a 21.5 multitouch screen.
We build on order with the possibility to customize multiple aspects and adapt the bending machine to any type of use necessary.
Automation levels
EVO BEND 80-3-1P
Caratteristiche
| Axe | Position | Name | Type |
| 1 | Y | BEND | BRUSHLESS |
| 2 | X | FORWARD | BRUSHLESS |
| 3 | Z | ROTATION | BRUSHLESS |
| 4 | M | CLAMP | HYDRAULIC |
| 5 | C | SHOULDER | HYDRAULIC |
| 6 | AN | MANDREL | HYDRAULIC |
| 7 | PI | COLLET | HYDRAULIC |
| 8 | S | FOLLOWING | PNEUMATIC |
| 9 | AS | TUBE SUPPORT | PNEUMATIC |
| 10 | RM | DIE RETURN | PNEUMATIC |
| 11 | W | MANDREL MOVEMENT | PNEUMATIC |
| 12 | K | POSITION MOVEMENT | PNEUMATIC |
EVO BEND 80-2-1P
Caratteristiche
| Axe | Position | Name | Type |
| 1 | Y | BEND | BRUSHLESS |
| 2 | X | AFORWARD | BRUSHLESS |
| 3 | M | CLAMP | HYDRAULIC |
| 4 | C | SHOULDER | HYDRAULIC |
| 5 | AN | MANDREL | HYDRAULIC |
| 6 | PI | COLLET | HYDRAULIC |
| 7 | S | FOLLOWING | PNEUMATIC |
| 8 | AS | TUBE SUPPORT | PNEUMATIC |
| 9 | RM | DIE RETURN | PNEUMATIC |
| 10 | W | MANDREL MOVEMENT | MANUAL |
| 11 | K | POSITION MOVEMENT | MANUAL |
EVO BEND 80-1-1P
Caratteristiche
| Axe | Position | Name | Type |
| 1 | Y | BEND | BRUSHLESS |
| 2 | M | CLAMP | HYDRAULIC |
| 3 | C | SHOULDER | HYDRAULIC |
| 4 | AN | MANDREL | HYDRAULIC |
| 5 | S | FOLLOWING | PNEUMATIC |
| 6 | AS | TUBE SUPPORT | PNEUMATIC |
| 7 | RM | DIE RETURN | PNEUMATIC |
EVO BEND 80-3-3P
Caratteristiche
| Axe | Position | Name | Type |
| 1 | Y | BEND | BRUSHLESS |
| 2 | XM | FORWARD | BRUSHLESS |
| 3 | Z | ROTATION | BRUSHLESS |
| 4 | W | MANDREL MOVEMENT | PNEUMATIC |
| 5 | K | POSITION MOVEMENT | PNEUMATIC |
| 6 | A | TUBE SUPPORT | PNEUMATIC |
| 7 | P | ALT. POSITION | HYDRAULIC |
| 8 | A | ALT. MANDREL | HYDRAULIC |
| 9 | S | FOLLOWING | HYDRAULIC |
| 10 | RM | DIE RETURN | HYDRAULIC |
| 11 | M | CLAMP | HYDRAULIC |
| 12 | C | SHOWLDER | HYDRAULIC |
| 13 | AN | MONDREL | HYDRAULIC |
| 14 | PI | COLLET | HYDRAULIC |
